Exterior Solar Shades

Exterior Rolling Screens

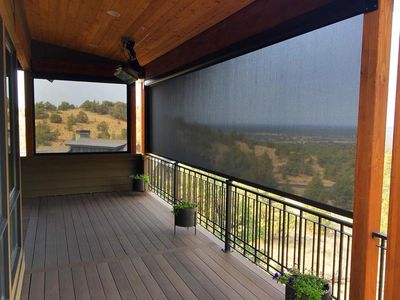

 The MASTERSHADE® exterior rolling solar screen systems by Sunair® are the perfect solution for maintaining shade and comfort in your home, office, or patio.  The Mastershade® dramatically decreases heat and glare caused by the sun and is the ideal solution for solar protection, glare control, and energy savings.  Our shades can also offer total black out by completely blocking the sunlight that penetrates your windows and doors.  Our shades also protect your furniture, curtains and floor coverings.  We have a solution for all of your retractable shading needs.  Each screen is custom crafted to fit your window or opening and are customized to best fit your individual sun protection needs and budget.  Choose between our five solar screen models and nine standard frame colors  depending on model to match or accent your exterior.  We have many fabrics to choose from that will taylor your need for solar control, while you still maintain a nice view through the window and mesh fabric.  As you can see below the view is very good through the fabric.


SC2000 Solar Screen

 The SC2000 Mastershade® is an exterior rolling screen  with a  small 4" x 4" cassette box.  The system is ideal as for solar control for smaller windows and openings.  It is available motorized or manual with standard tracks, flange tracks, or cables. The screen can be rolled up and down as needed.  The fabric hembar runs on the cable or track by means of gravity.  When the shade is retracted the fabric is stored in the built-in semi closed protective box.  A  weighted aluminum hem bar in the fabric fold / pocket keeps the fabric taut.




The SC2000 Mastershade® is available with below configuration and options.

  • Available in custom sizes up to 14 ft wide and 24 ft wide with a split x  14 ft High
  • Available in nine (9) different metal frame colors
  • Available manual or motorized , with wind sensors and remote control
  • Available in hundreds of mesh or acrylic fabric colors
  • Available with standard track, flange track, or stainless cables
  • Backed by a 5 year limited frame warranty, and 5 year motor  warranty


SC2500 Solar Screen

 The SC2500 Mastershade® is an is an open roll exterior screen that is installed utilizing two end brackets and an optional hood.  The system is available motorized or manual with standard tracks, zipper tracks, or cables.  The screen can be rolled up and down as needed.  The fabric hem bar runs on the cable or track by means of gravity.  When the shade is retracted the fabric is rolled up on a 78 mm open roller tube.  A  weighted aluminum hem bar in the fabric fold / pocket keeps the fabric taut.




The SC2500 Mastershade® is available with below configuration and options

  • Available in custom sizes up to 20 ft wide / wider with splits  and up to 16 ft. high
  • Available in nine (9) different metal frame colors
  • Available manual or motorized, with wind sensors and remote control
  • Available in hundreds of mesh or acrylic fabric colors
  • Available with standard track, zipper track or stainless cables
  • Backed by a 5 year limited frame warranty, and 5 year motor warranty


SC4000 Solar Screen

 The SC4000 Mastershade® is an is an exterior rolling screen  with a larger  5" x 5" cassette box.  The SC4000 is ideal for solar control only and for small to large windows, and open porches. The system is available with standard cables. For windy locations, the optional magnetic locks are available for extra stability.  With the magnetic locks installed, the screen fabric remains taut when the screen is in its lowered position. If a wind gust lifts the hem bar, the magnetic lock will release the screen fabric from the pressure and then the magnetic lock system will automatically reposition the hem bar back into the lock.* The system is available motorized or manual . and can be rolled up and down as needed.   When the shade is retracted the fabric is stored in the built-in closed protective box.




The SC4000 Mastershade® is ® is available with below configuration and options

  • Available in custom sizes up to 22 ft wide and 16 ft High with standard cables*
  • Available in custom sizes up to 16 ft wide and 14 ft High with "magnetic" cable locks*
  • Available in nine (9) different metal frame colors
  • Available manual or motorized , with wind sensors and remote control
  • Available in hundreds of mesh or acrylic fabric colors
  • Available with stainless cables only either standard or magnetic lock
  • Backed by a 5 year limited frame warranty, and 5 year motor  warranty

* Max height will vary with width and fabric type desired



Zipper Screens



The Mastershade® SC4500 zipper screen is the ideal rolling solar screen and bug screen system for verandas, garage doors and lanai’s.  Finally, you can enjoy outdoor space without worrying about the sun’s glare and in the evening without worrying about pesky bugs. Simply roll down the screen and the zipper system will do the rest. This specially engineered zipper system keeps the fabric within the track, keeping unwanted bugs from entering the space. Both Solar screen fabric and Tuff Screen Bug fabrics are available.

The SC4500 Mastershade® can also be used with Ferrari 502 vinyl fabric and clear windows for keeping moderate weather at bay to create a three season roll down enclosure.  Great for private residences, hospitality spaces, and restaurant.  The zipper screen with windows are also ideal for our Pergola® awning (see our section on Pergola® retractable roof awnings).  Each screen is custom crafted to fit your opening and are customized to best fit your individual needs.  Choose between our nine standard frame colors.   We have many fabrics to choose from that will fit your solar control needs, bug protection needs, or your need for a three season enclosed space.


 The SC4500 Mastershade® with mesxh fabric is an exterior rolling screen with a compact 5" x 5" cassette box. The system is ideal as for solar control and bug screen control for large windows and openings. The fabric hembar runs up and down the track by means of gravity. When the shade is retracted the fabric is stored in the built-in enclosed protective box. A weighted aluminum hem bar keeps the fabric taut.




The SC4500 Mastershade® ziopper screen with mesh fabric is available with below configuration and options.

  • Available in custom sizes up to 20' ft wide x 16 ft High*
  • Available in nine (9) different metal frame colors
  • Available manual with interior or exterior hand crank, or optional motorized, with wind sensors and remote control
  • Available in many mesh fabric types, colors, and openess factors
  • Available with zipper track only and optional U channels for use on un even walls
  • Backed by a 5 year limited frame warranty, and 5 year motor warranty

* Max available height will vary with width
